[Analysis] Mode 2. Understanding Search Functionality (Feature 분석)

▶



SELECT user_id, session, MIN(occurred_at) AS session_start, MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session

https://mode.com/sql-tutorial/understanding-search-functionality/

Understanding Search Functionality | SQL Analytics Training - Mode

서비스

검색 기능 개선을 고려하고 있다.

웹페이지 모든 사용자에게 보이는 검색어 상자가 있다.

사용자가 검색창에 입력을 시작하면 가장 관련성이 높은 결과가 드롭다운 목록으로 나타난다.

결과는 범례별

로 구분되며, 모든결과를 볼수 있는 옵션도 있다. 엔터키를 누그러나  모든 결과 보기를 누르면, 그 결과는 범주별로 탭에 의해 분리된다. 각 탭은 관련성 및 연대순으로 wkehdr정렬된다 .

검색결과 페이지에는 사용자가 포함된 그룹 또는 날짜 범위내에서 다시 검색할수 있는 고급검색 상자 기능이 있다.







The problem

검색을 처리하기 전에 제품 팀은 엔지니어링 팀의 시간이 검색에 잘 사용되는지 확인하려고 합니다. 결국, 각각의 새로운 기능은 다른 잠재적 기능을 희생시키면서 옵니다. 제품 팀은 처음부터 검색 작업을 수행해야 하는지 여부와 검색 작업을 수행해야 하는 경우 수정 방법을 결정하는 데 가장 관심이 있습니다.

-> 검색 기능 개선의 필요성이 있는가 ?

있다면 어떤 부분을 먼저 수정해야 하는가 ?

Getting oriented

어떻게 정적으로 표현할 것인가 ?



The data

search_autocomplete: 사용자가 자동 ​​완성에서 검색 옵션을 클릭할 때 기록됩니다.
search_run: 사용자가 검색을 실행하고 검색 결과 페이지를 볼 때 기록됩니다.
search_click_X: 사용자가 검색 결과를 클릭할 때 기록됩니다. 1에서 10 사이의 X는 클릭된 검색 결과를 나타냅니다.
테이블 이름과 열 정의가 아래에 나열되어 있습니다. 테이블 이름을 클릭하면 해당 테이블에 대한 정보를 볼 수 있습니다.



Table 1. User

user_id
created_at	first signed up
state	active or pending
activated_at	The time the user was activated, if they are active
company_id
language



Table. Events

user_id
occured_at
event_type	signup_flow,, engagement
event_name	create_user: User is added to Yammer's database during signup process  enter_email: User begins the signup process by entering her email address enter_info: User enters her name and personal information during signup process complete_signup: User completes the entire signup/authentication process  home_page: User loads the home page  like_message: User likes another user's message  login: User logs into Yammer search_autocomplete: User selects a search result from the autocomplete list  search_run: User runs a search query and is taken to the search results page  search_click_result_X: User clicks search result X on the results page, where X is a number from 1 through 10. send_message: User posts a message view_inbox: User views messages in her inbox
location
device





Making a recommendation



--------------------------------------------------------------------------



Developing hypotheses

이 서비스의 목적을 찾아 보자

검색 서비스의 목적 : 빠르게 , 정확하게 최소한의 행동으로 원하는 것을 찾는 것.



- Search Use : 우리 서비스에 사용되는 기능인지 확인( 서비스 내에서 주요한 기능인지 확인 )

- Search frequency : 짧은 시간 내 검색 빈도 확인

- Repeated terms : 관련된 단어로 검색하는지 확인하는 것이 빈도를 확인하는 것 보다 정확하지만, 훨씬 더 어렵기 때문에  빈도를 확인하는것으로 대체

- Clickthroughts : 한 번의 검색에서 몇개의 결과를 클릭했는 지 확인 -> 원하는 결과를 찾기 어려웠다는 의미

- Autocomplete Clickthroughts: 자동완성 클릭수 확인



The state of search

1. Search Use : 우리 서비스에 사용되는 기능인지 확인( 서비스 내에서 주요한 기능인지 확인 )

  -> 주별로 전체 세션 중, auto_complete 과 run 이벤트가 포함된 session의 비율 구하기

  -> 분석 결과 : 전체 세션 중 약 25% 세션에서 자동완성 기능이, 약 8% 세션에서 run기능이 사용된다.

                        즉, 개선사항에 대해 주의 깊게 볼 가치가 있는 서비스이다.





step1. 유저별로  전/후 이벤트와의 시간 차 구하기

SELECT user_id,	event_type, event_name,occurred_at,
		#'유저별'로 통계구하기 > PARTITION BY user_id
       occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
       LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
       ROW_NUMBER() OVER () AS id
FROM tutorial.yammer_events e
WHERE e.event_type = 'engagement'
ORDER BY user_id,occurred_at



step2. 이벤트를 세션으로구분하기 (세션 = 전/후 이벤트와의 시간 차가 10분 이상인 이벤트 )

SELECT bounds.*,
       CASE WHEN last_event ISNULL THEN id
            WHEN last_event > INTERVAL '10 MINUTE' THEN id
            ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
FROM (SELECT user_id,	event_type, event_name,occurred_at,
      		occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
      FROM tutorial.yammer_events e
      WHERE e.event_type = 'engagement'
      ORDER BY user_id,occurred_at) AS bounds
WHERE last_event >= INTERVAL '10 MINUTE'
OR next_event >= INTERVAL '10 MINUTE'
OR last_event ISNULL
OR next_event ISNULL
ORDER BY user_id



step 3. 유저별, 세션별 이벤트 시작시간/종료시간 구하기

SELECT user_id, session, MIN(occurred_at) AS session_start, MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session



step 4. tutorial.yammer.event 테이블과 위에서 구한 session 테이블을 left 조인하여

모든 event 들에 대해 session 번호와 , 세션시작시간 정보 찾기

=> 하나의 세션에 어떤 이벤트 행동이 있는지 확인할 수 있다.

SELECT e.*, session, session_start
FROM tutorial.yammer_events e
LEFT JOIN (SELECT user_id, session,
      MIN(occurred_at) AS session_start,
      MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session) session
ON e.user_id = session.user_id
AND e.occurred_at >= session.session_start
and e.occurred_at <= session.session_end
WHERE event_type = 'engagement'



step5. 각 세션별, 유저별로 각 이벤트가 발생한 수 계산

SELECT x.session , x.session_start, x.user_id,
  COUNT(CASE WHEN x.event_name = 'search_autocomplete' THEN x.user_id ELSE NULL END) AS autocompletes,
  COUNT(CASE WHEN x.event_name = 'search_run' THEN x.user_id ELSE NULL END) AS runs,
  COUNT(CASE WHEN x.event_name LIKE 'search_click%' THEN x.user_id ELSE NULL END) AS clicks

FROM (SELECT e.*, session, session_start
FROM tutorial.yammer_events e
LEFT JOIN (SELECT user_id, session,
      MIN(occurred_at) AS session_start,
      MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session) session
ON e.user_id = session.user_id
AND e.occurred_at >= session.session_start
and e.occurred_at <= session.session_end
WHERE event_type = 'engagement' ) x
GROUP BY x.session, x.session_start, x.user_id

step 6. 주 별로 , 세션에 autocomplete , run 이벤트가 포함된 세션의 비율 구하기

SELECT DATE_TRUNC('week',z.session_start) as week,
  COUNT(CASE WHEN z.autocompletes > 0 THEN z.session ELSE NULL END)/COUNT(*)::FLOAT AS with_autocompletes,
  COUNT(CASE WHEN z.runs >0 THEN z.session ELSE NULL END)/COUNT(*) :: float AS with_runs
FROM(SELECT x.session , x.session_start, x.user_id,
  COUNT(CASE WHEN x.event_name = 'search_autocomplete' THEN x.user_id ELSE NULL END) AS autocompletes,
  COUNT(CASE WHEN x.event_name = 'search_run' THEN x.user_id ELSE NULL END) AS runs,
  COUNT(CASE WHEN x.event_name LIKE 'search_click%' THEN x.user_id ELSE NULL END) AS clicks

FROM (SELECT e.*, session, session_start
FROM tutorial.yammer_events e
LEFT JOIN (SELECT user_id, session,
      MIN(occurred_at) AS session_start,
      MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session) session
ON e.user_id = session.user_id
AND e.occurred_at >= session.session_start
and e.occurred_at <= session.session_end
WHERE event_type = 'engagement' ) x
GROUP BY x.session, x.session_start, x.user_id ) z
GROUP BY week
ORDER BY week





2. Search frequency : 짧은 시간 내 검색 빈도 확인

  -> 1개의 세션 당 실행되는 autocomplete/run 이벤트 개수 확인하기

  -> 구하는 방법  : step 5. 세션별,유저별 각 이벤트의 개수에서 autocomplete 과 run 이벤트를 세션단위로 집계하면 된다.

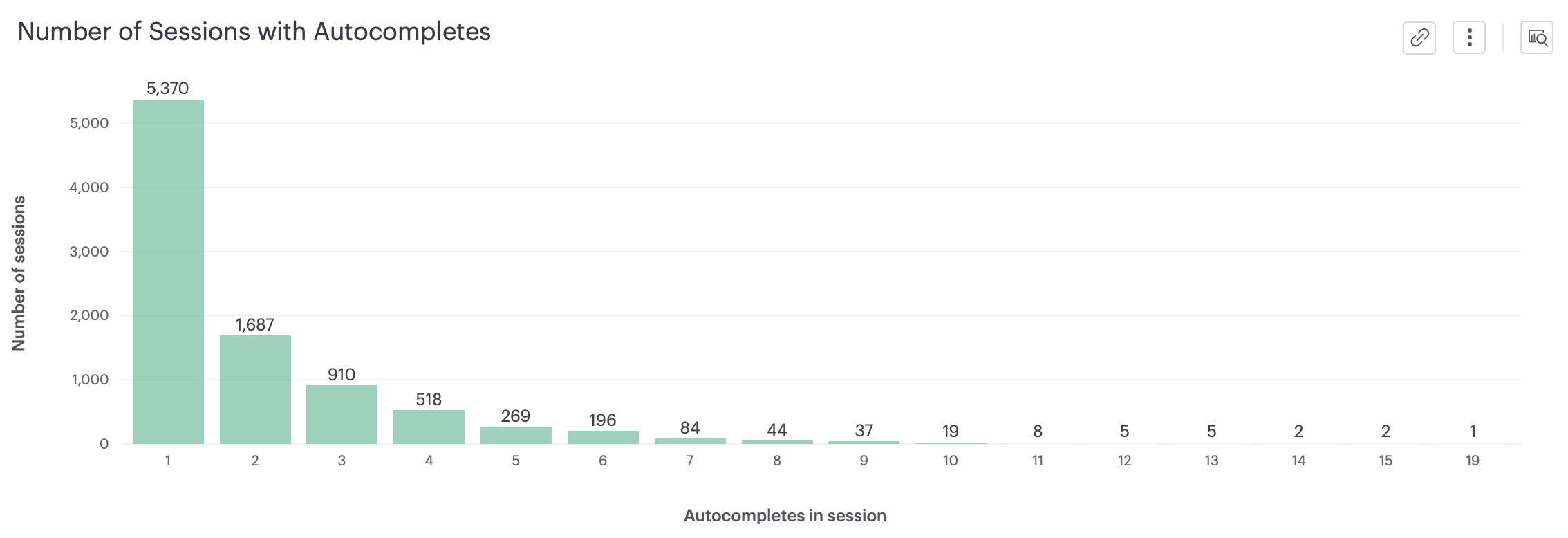

#세션당 auto_completes 이벤트 개수
SELECT z.autocompletes, COUNT(*) as sessions
FROM(SELECT x.session , x.session_start, x.user_id,
  COUNT(CASE WHEN x.event_name = 'search_autocomplete' THEN x.user_id ELSE NULL END) AS autocompletes,
  COUNT(CASE WHEN x.event_name = 'search_run' THEN x.user_id ELSE NULL END) AS runs,
  COUNT(CASE WHEN x.event_name LIKE 'search_click%' THEN x.user_id ELSE NULL END) AS clicks

FROM (SELECT e.*, session, session_start
FROM tutorial.yammer_events e
LEFT JOIN (SELECT user_id, session,
      MIN(occurred_at) AS session_start,
      MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session) session
ON e.user_id = session.user_id
AND e.occurred_at >= session.session_start
and e.occurred_at <= session.session_end
WHERE event_type = 'engagement' ) x
GROUP BY x.session, x.session_start, x.user_id) z
WHERE z.autocompletes >0
GROUP BY z.autocompletes
ORDER BY z.autocompletes





3. Clickthroughts : 한 번의 검색에서 몇개의 결과를 클릭했는 지 확인

Clicks per Session With at Least One Search Run

-> (최소 1 번의 run 수행 후 ) click_result 수에 따른 세션 개수

-> 분석결과 : 한번도 클릭하지 않은 경우가 제일 많다 . 즉 , 검색결과가 적절하지 않은 경우가 제일 많다는 것.

SELECT z.clicks, COUNT(z.session)
FROM(SELECT x.session , x.session_start, x.user_id,
  COUNT(CASE WHEN x.event_name = 'search_autocomplete' THEN x.user_id ELSE NULL END) AS autocompletes,
  COUNT(CASE WHEN x.event_name = 'search_run' THEN x.user_id ELSE NULL END) AS runs,
  COUNT(CASE WHEN x.event_name LIKE 'search_click%' THEN x.user_id ELSE NULL END) AS clicks

FROM (SELECT e.*, session, session_start
FROM tutorial.yammer_events e
LEFT JOIN (SELECT user_id, session,
      MIN(occurred_at) AS session_start,
      MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session) session
ON e.user_id = session.user_id
AND e.occurred_at >= session.session_start
and e.occurred_at <= session.session_end
WHERE event_type = 'engagement' ) x
GROUP BY x.session, x.session_start, x.user_id) z
WHERE z.runs >0
GROUP BY z.clicks
ORDER BY z.clicks



Average Clicks per Session by Searches per Session

 -> 세션별로 runs 수 ,  click_result 수의 평균을 구해보자

     runs 개수 보다 click_result  수가 적다면, 한번의 검색에 하나의 게시글도 누르지 않은 것 -> 검색 자체가 잘못 되었다고 판단.

-> 분석 방법 : step5 에서 runs 개수별  click 수 집계

-> 분석 결과 : run 의 경우, 평균 click_result의 이벤트 수 보다 낮다.  즉, 일반 검색의 경우 의미있는 검색이 아닐 확률이 더 높다.



SELECT z.runs, AVG(clicks)
FROM(SELECT x.session , x.session_start, x.user_id,
  COUNT(CASE WHEN x.event_name = 'search_autocomplete' THEN x.user_id ELSE NULL END) AS autocompletes,
  COUNT(CASE WHEN x.event_name = 'search_run' THEN x.user_id ELSE NULL END) AS runs,
  COUNT(CASE WHEN x.event_name LIKE 'search_click%' THEN x.user_id ELSE NULL END) AS clicks

FROM (SELECT e.*, session, session_start
FROM tutorial.yammer_events e
LEFT JOIN (SELECT user_id, session,
      MIN(occurred_at) AS session_start,
      MAX(occurred_at) AS session_end
FROM  (SELECT bounds.*,
         CASE WHEN last_event ISNULL THEN id
         WHEN last_event > INTERVAL '10 MINUTE' THEN id
         ELSE LAG(id,1) OVER (PARTITION BY user_id ORDER BY bounds.occurred_at) END AS session
       FROM (SELECT user_id,	event_type, event_name,occurred_at,
            occurred_at - LAG(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) AS last_event,
            LEAD(occurred_at,1) OVER (PARTITION BY user_id ORDER BY occurred_at) - occurred_at AS next_event,
            ROW_NUMBER() OVER () AS id
          FROM tutorial.yammer_events e
          WHERE e.event_type = 'engagement'
          ORDER BY user_id,occurred_at) bounds
        WHERE last_event >= INTERVAL '10 MINUTE'
        OR next_event >= INTERVAL '10 MINUTE'
        OR last_event ISNULL
        OR next_event ISNULL
        ORDER BY user_id ) final
GROUP BY user_id, session) session
ON e.user_id = session.user_id
AND e.occurred_at >= session.session_start
and e.occurred_at <= session.session_end
WHERE event_type = 'engagement' ) x
GROUP BY x.session, x.session_start, x.user_id) z
WHERE z.runs >0
GROUP BY z.runs
ORDER BY z.runs





4. 검색 결과물 중 click 한 게시글의 순서

clicks by search result

-> click_result 이벤트 의 순서 분포확인

-> 분석 결과 : 고르게 분포되어있다고 판단한다 ( 순서에 따른 가중치가 잘 부여되어있다면 2-3 번째에 많이 몰려있어야한다.

SELECT TRIM(LEADING 'search_click_result' FROM event_name) ::INT  AS number, count(*)
FROM tutorial.yammer_events
WHERE event_name LIKE 'search_click_result%'
GROUP BY 1
ORDER BY 1



5. 재사용률 확인

Sessions with Search Runs in Month after Users' First Search
